Ultra Precision Processing

Introduced the world’s largest φ700 diamond turning lathe to meet the needs for large free-form mirrors with slow-tool servo. Capable of mirror finishing of large optical products only by lathing with a single crystal diamond turning tool.

PICK UP MACHINE

•

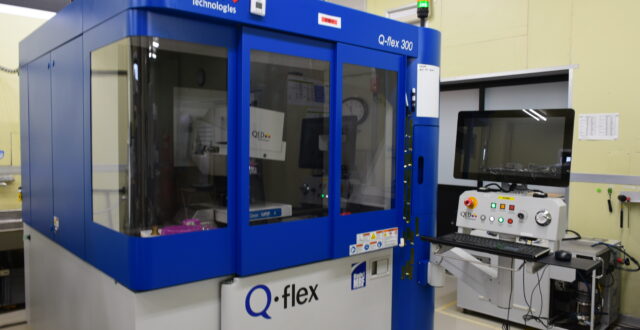

  Magneto-Rheological FinishingMagneto-Rheological Finishing

  Name	Q-flex300（QED technologies）
  Processing range	phi300mm

  Ultra-precision free-form surface polishing system using magneto-viscoelastic fluid

  Q-flex300 (QED technologies) is an MRF polishing machine for free-form surfaces. MRF (Magneto-Rheological Finishing) is "Magneto-Viscoelastic Fluid Finishing", Magneto-Rheological Fluid containing abrasive is poured onto a rotating wheel. The fluid is precisely controlled, and the process reproducibility is extremely high, it is an extremely effective processing technology not only for surface roughness improvement, but also for shape modification.

•

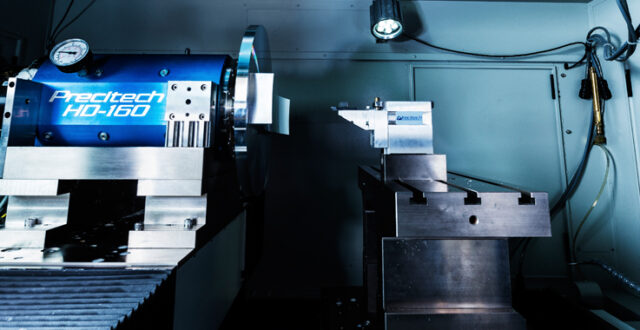

  Diamond TurningDiamond Turning

  Name	Nanoform 700ultra（PRECITEC）
  Processing range	phi700mm
  Axis	3-Axis (X, Z, C)

  CNC Lathe with single-crystal diamond bite.
  Mounted ATC and air vibration isolation table
  Viable to process large high-precision free form mirror by Slow Tool Sarvo
  Possible to process up to a maximum diameter of φ700

  We have an experience of producing ultra-large free-form mirrors measuring 200 x 600 in length and width and weighing approximately 20 kg.

Products

Space & Astronomy	Aluminum mirror, Distortion-free glass mirror
Automotive	Mold for Head Up Display
Various industries	High-precise mirror shaped flat, spherical, aspherical, and free form

Materials

Diamond turning	Aluminum, Layer of Nickel plating with phosphorous as binder
MRF	Glass, Aluminum, Layer of Nickel plating with phosphorous as binder

Processing machines

Magneto-Rheological Finishing	Q-flex300	1	QED technologies
Diamond Turning	Nanoform 700ultra	1	PRECITEC
Surface cut	Planoform 650	1	PRECITEC
Diamond Turning	Nanoform 200ultra	1	PRECITEC
Diamond Turning	Nanoform 200	1	PRECITEC
Diamond Turning	Nanoform 700	1	PRECITEC
